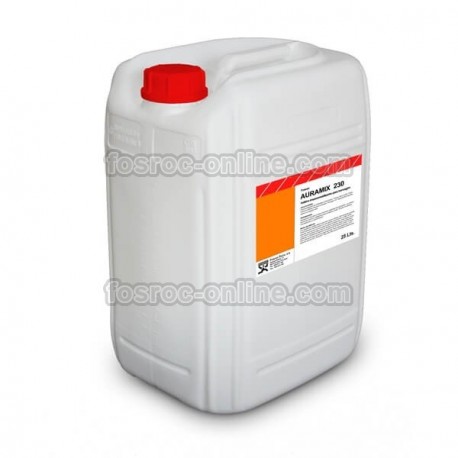

Auramix 230 - High performance new generation plasticiser admixture

High performance new generation plasticiser admixture. Dosage: 0.3-1.1% over cement weight.








Auramix 230 is a new generation admixture with great water reduction power. Specially designed for use in ready-mixed concrete plants and civil works. It improves the appearance and compactness of the concrete. The plasticising effect is maintained, even in hot weather.


  • To obtain a quality concrete, compactness, durability and resistance.
  • To obtain a concrete of excellent workability reducing the proportion of water of kneading and improving docility.
  • Specially designed for use in prepared concrete plants and in civil works.


  • Strong reduction of water: between 15 and 20% depending on the dosages used.
  • Reduces permeability and penetration of water into concrete.
  • Provides waterproofing properties to concrete.
  • The incorporation of new synthesis molecules greatly improves the appearance and compactness of the concrete.
  • The plasticizing effect is maintained, even in hot climates.
  • Minimizes shrinkage of the concrete by allowing it to work with lower water / cement ratios.


Auramix 230 complies with standard UNE-EN 934-2: 2010 Table 2 as water reducer / plasticizer.


Auramix 230 is a high-end multifunctional plasticizer based on synthetic polymers intended for the preparation of ready-mixed concrete with a high water-reducing power and dispersant of the cement particles. It maintains the workability of concrete longer than conventional plasticizers.

Typical dosage

Optimum dosing of Auramix 230 to achieve specific requirements should be determined by testing the materials and conditions under which it will be practiced.

A starting point for such tests is to employ a dosage of 0.3-1.1 liters per 100 kg of cementitious material, including ash, slag or microsilica.


The following results were obtained at a temperature of 20 ° C:

Appearance: Light golden liquid
Density: 1.06 ± 0.01 kg / l
PH: 5.5 ± 1.0
Content in water-soluble chlorides (CI-): ≤ 0,10%
Alkaline content (Na2O equivalent): max. 6% by mass
Main function: Increase workability
Secondary function: Increase mechanical resistance

How to use

Mix Design

Once the appropriate dose has been selected, care should be taken to ensure the consistency of
The materials used and the processes of mixing and distribution.


Auramix 230 is compatible with other Fosroc Euco additives used in the same concrete mix. If more than one additive is used, these must be added to the concrete separately and not mixed together before being added. The resulting properties of the concrete containing more than one additive should be checked by prior testing.
Auramix 230 is suitable for use with all cements complying with standard RC-08.

Dosing system

The correct amount of Auramix 230 should be measured by a suitable doser. To obtain the best results, the additive should be added to the concrete in the kneading water or directly in the mixer at the same time as the water. Contact the Technical Department of Fosroc Euco to be advised on the proper dosing equipment and its installation.

Effects of overdosage

An overdose of twice the maximum indicated dose can cause delay of concrete setting as well as an additional air occlusion.


The final characteristics of all structural concrete will depend on good curing practice. Therefore, it is very important to use a Fosroc Euco Concure curing membrane, water spray or wet burlap.

Cleaning and Disposal

Auramix 230 spills should be absorbed with sand or earth and transferred to appropriate containers. The product residues should be sandblasting with large amounts of water. Disposal of the product and packaging is the responsibility of the end user.


Auramix 230 has a storage period of 12 months if kept in a dry place and in its original containers and closed at a temperature of between 2 ° C and 40 ° C.

Freezing point: -3 ° C approx.


Safety and hygiene

Auramix 230 should not be ingested or put into contact with skin and eyes. Wear protective gloves and goggles. Splashes on the skin should be removed with water. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.

If swallowed, seek medical advice immediately. Do not induce vomiting.

For more information consult the Material Safety Data Sheet.


Auramix 230 is not flammable.
